FLASHHOBBY D4245EVO 700KV RC Outrunner Brushless Motor for UAV Aircraft Multicopters RC Fixed Wing Plane Helicopter

Product Description

Product Presentation

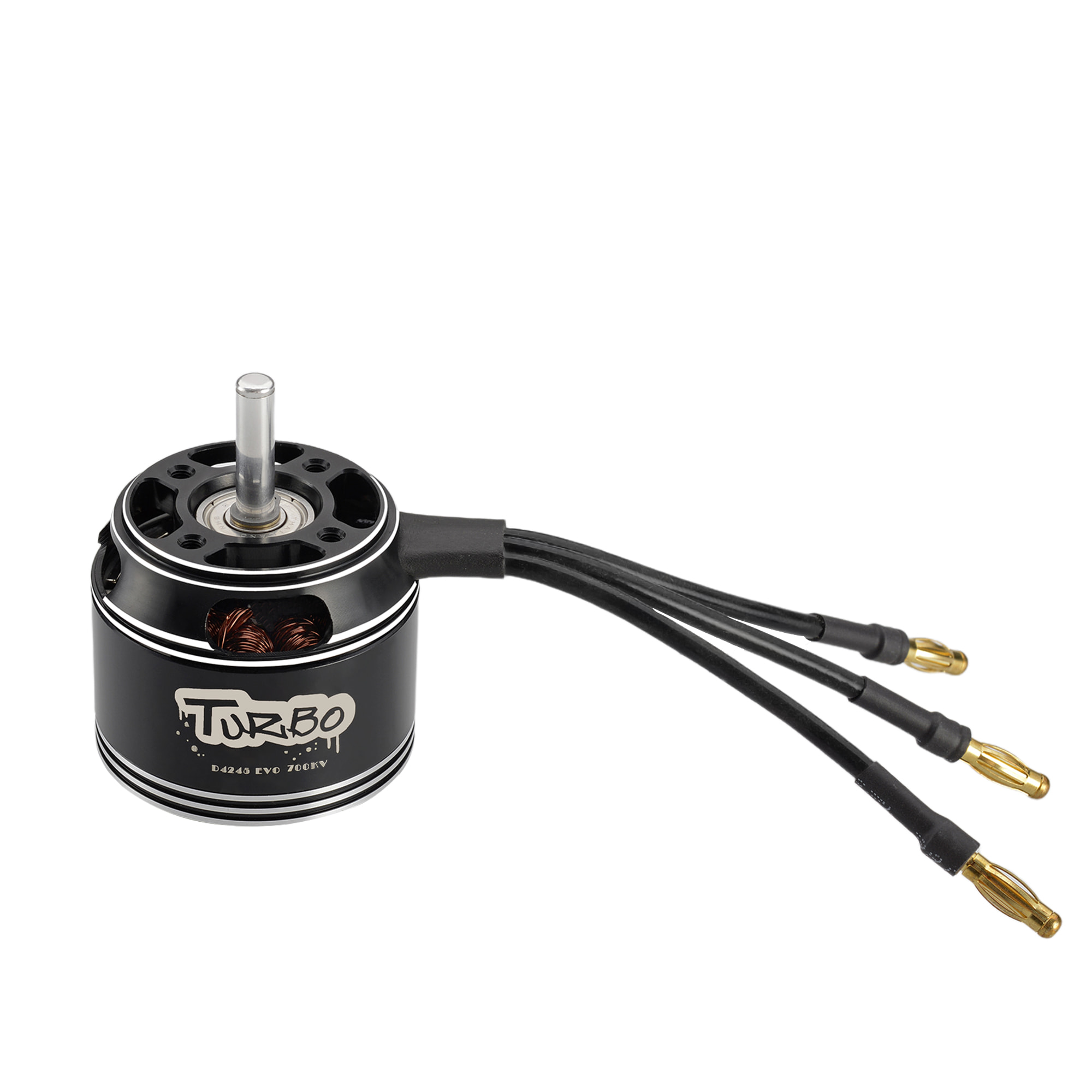

Product View 1
Product View 2

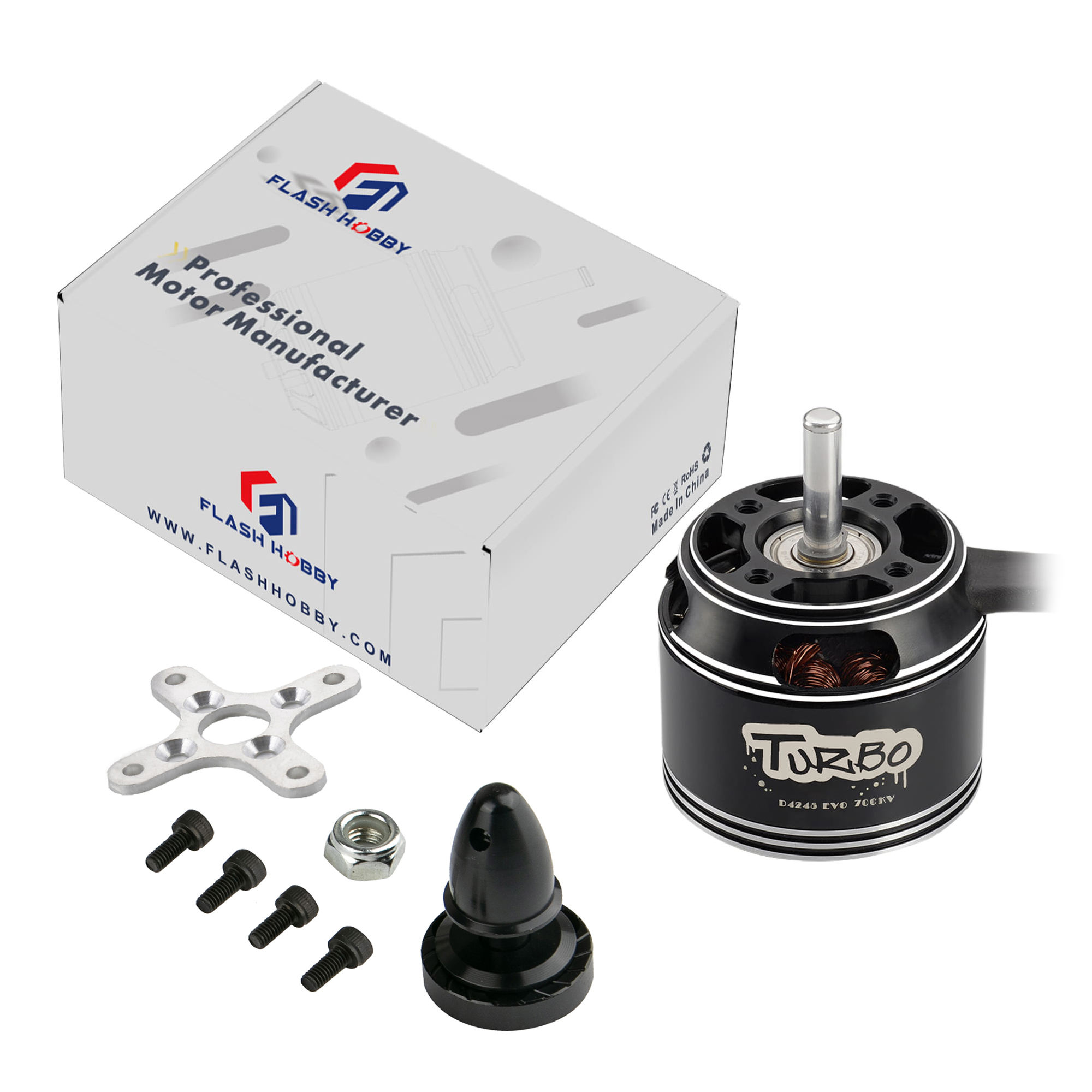

Product View 3
Product Dimensions
Technical Specification
Parameter Details
Warranty3months-1year
Model NumberD4245EVO
UsageBOAT, Car, Electric Bicycle, FAN, Home Appliance
TypeBrushless Motor
Torque3517g
ConstructionPermanent Magnet
Protect FeatureWaterproof
Speed (RPM)700KV
Continuous Current (A)55.63a
EfficiencyIE 1
Weight173.5g (Including wires)
Motor Size42.8 x 45mm
Shaft Size5.0 * 63.0mm
Configuration12N14P
Max Watts1013W
Max Current55.63A
Resistance45.4mΩ
Battery5-6S Lipo
Suggested Prop14 inch prop
Professional Capability
Providing propulsion system solutions for UAVs with advanced technology, specializing in Motors, ESCs (Electronic Speed Controllers), and Servos. Our products have passed ISO 9001:2015, which is widely used for aerial photography, industrial, agricultural, and commercial applications. With a strong R&D ability and technical team from famous branded enterprises with rich experience in the RC industry, we provide professional OEM/ODM RC solutions. Our focus covers all series of flight control systems, brushless speed controllers/ESC, FOC speed controllers (ESC), outrunner brushless motors, hall brushless motors, and photography applications. We take customer demands as the orientation, aiming for product performance and quality improvement to bring satisfying products to our esteemed customers.
Factory View
Product Line 1
Product Line 2
Certifications
ISO Certification
Frequently Asked Questions
How do you ensure the quality of your brushless motors?
We maintain strict quality control by providing a pre-production sample before mass production and performing a final inspection before every shipment. Our processes are ISO 9001:2015 certified.
What types of propulsion products can I purchase?
We specialize in a wide range of components including Brushless motors, Brushless gearbox motors, Speed Controllers (ESC), Flight controllers, and Brushless Gimbal motors.
What are the primary applications for these motors?
Our propulsion systems are widely used in UAVs for aerial photography, industrial inspections, agricultural spraying, and commercial drone applications, as well as in RC boats and cars.
Do you offer customized solutions or OEM services?
Yes, we provide professional OEM/ODM RC solutions. Our experienced technical team can customize flight control systems and motors to meet specific customer requirements.
What are your accepted delivery and payment terms?
We accept delivery terms such as FOB, CIF, and EXW. Supported payment methods include T/T, PayPal, and Western Union, with transactions accepted in USD, EUR, and CNY.
Why should I choose your propulsion systems over other suppliers?
We combine advanced technology with rich RC industry experience. Our focus on product performance, high-quality standards (ISO 9001:2015), and dedicated customer orientation ensures reliable and efficient solutions.
