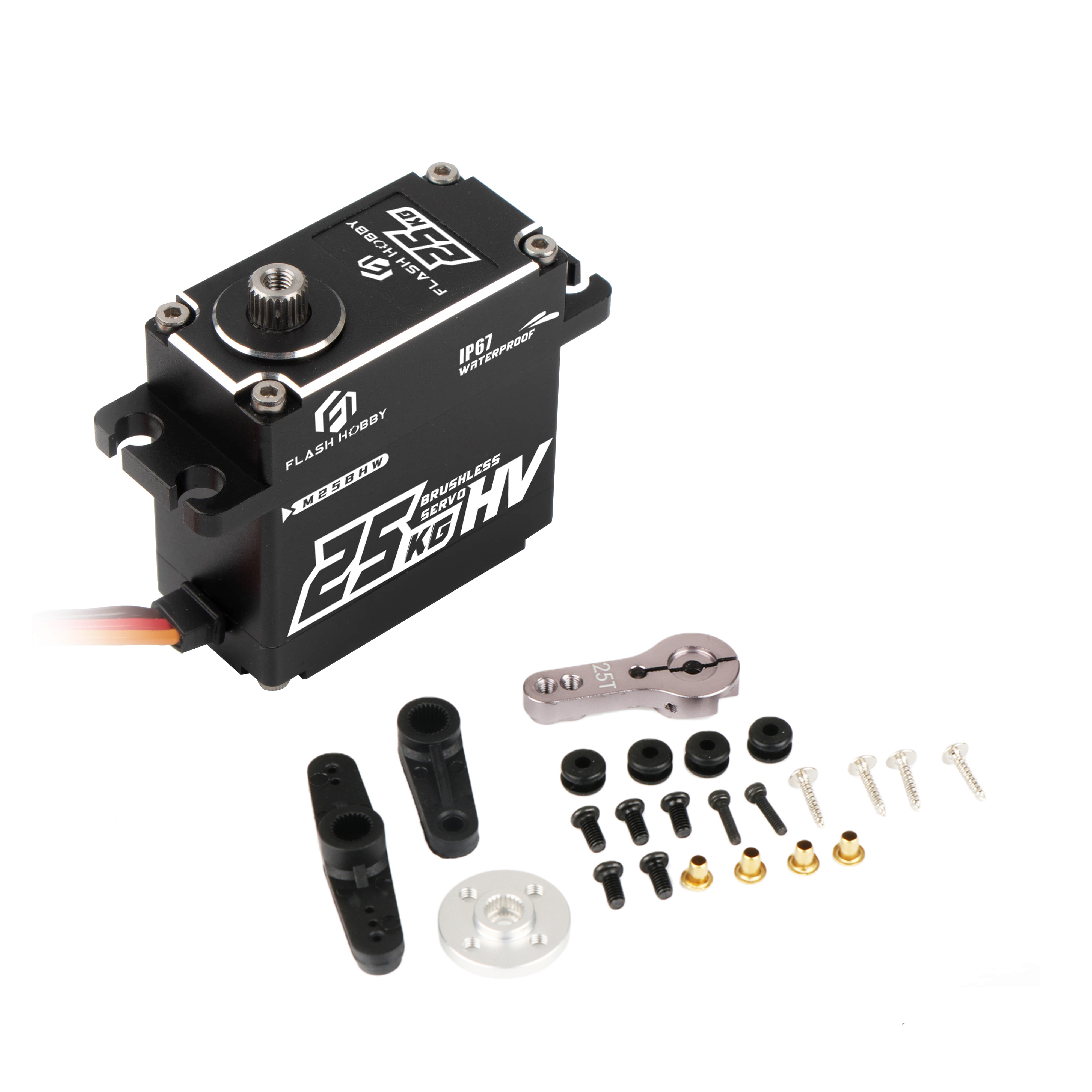

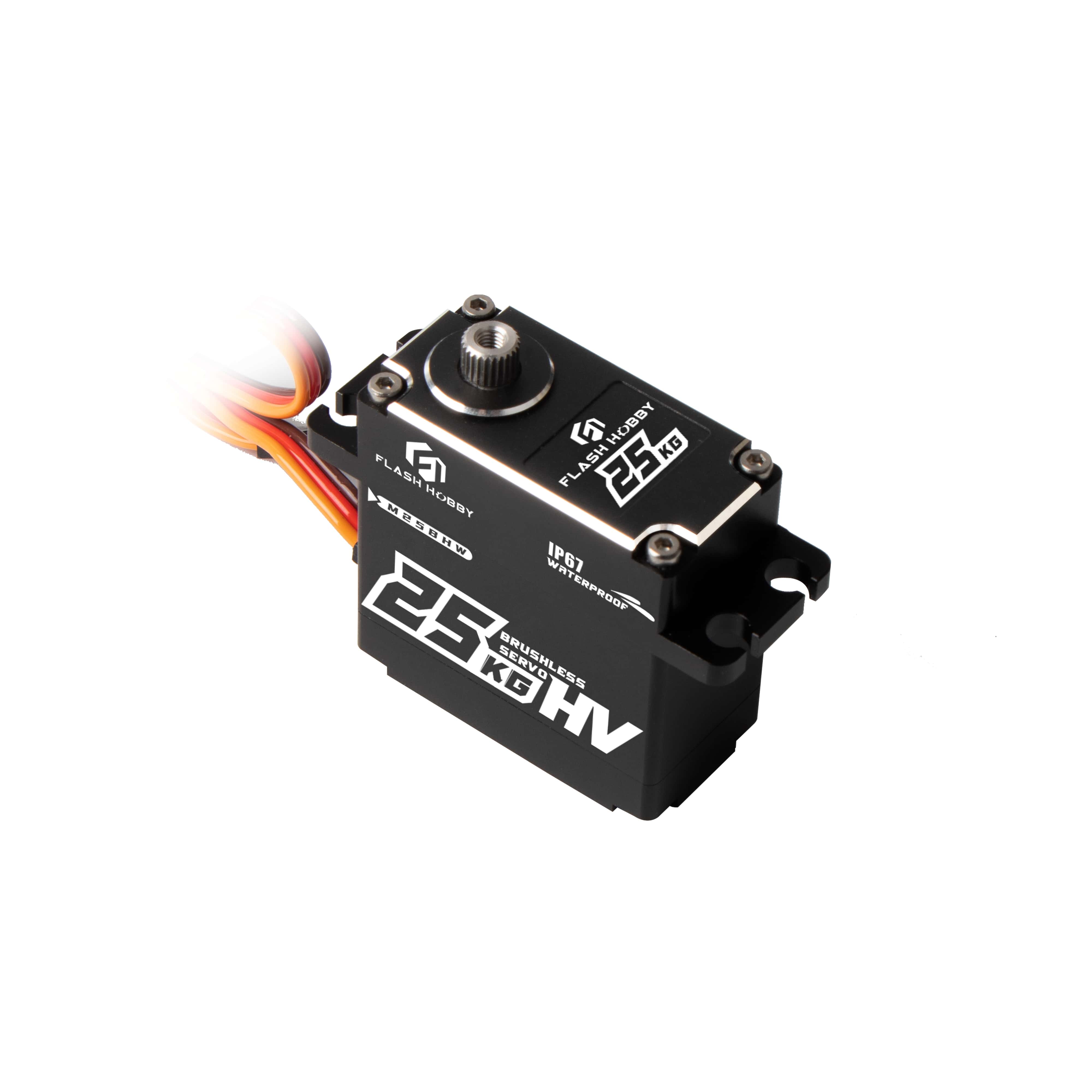

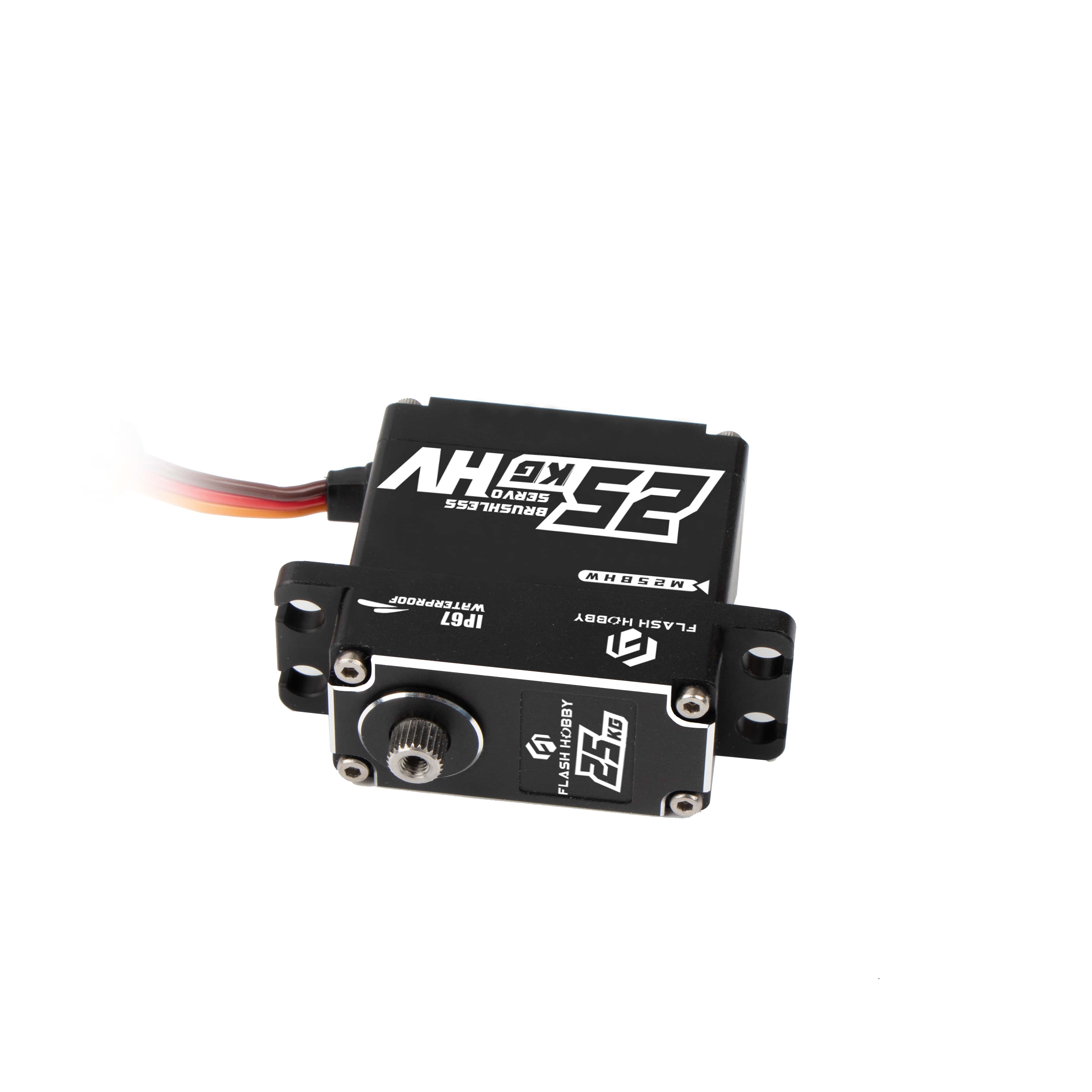

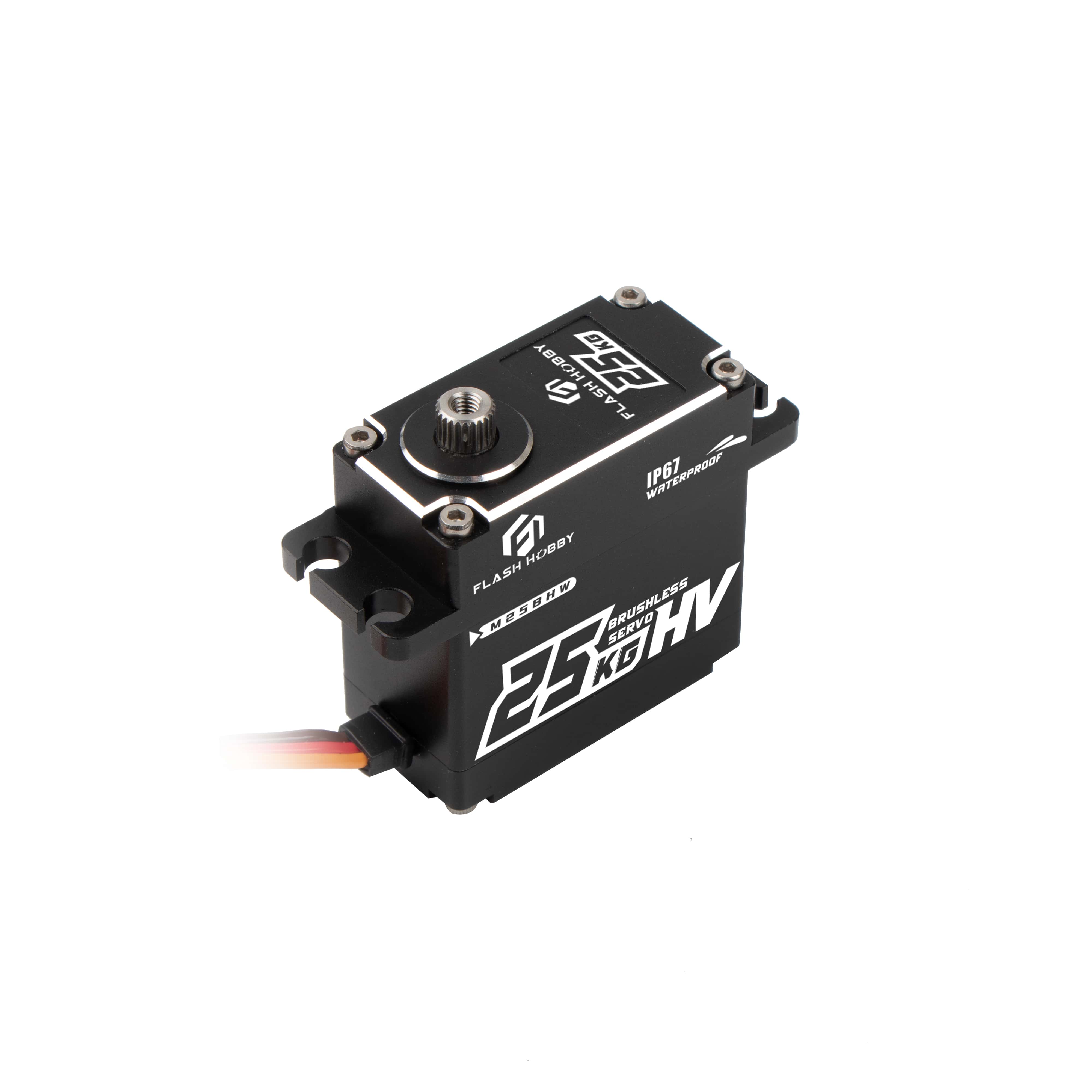

Flashhobby 25KG Torque M25BHW Permanent Magnet Waterproof Full Metal Gear Digital Brushless Servo Motor Home Appliance Fan Boat

Product Description

📦
Product Description
⚙️
Specifications
Model NumberM25BHW
UsageBOAT, Car, Electric Bicycle, FAN, Home Appliance
TypeSERVO MOTOR
Torque25KG
ConstructionPermanent Magnet
CommutationBrushless
Protect FeatureWaterproof
Speed (RPM)25kg-cm/0.04sec/60° @ 8.4V
Continuous Current6000mA
EfficiencyIE 1
Size40x20x40.50mm
Weight75g (without servo horn)
Signal TypeDigital Control
Case MaterialCNC AL6082 Aluminum Case
Connector Wire300MM JR Plug (22AWG)
Voltage Range6.0V ~ 8.4V
Ball Bearing2BB
🏢
Technical Overview
Providing propulsion system solutions for UAVs with advanced technology, our expertise lies in high-performance Motors, ESCs (Electronic Speed Controllers), and Servos. Our production systems are ISO 9001:2015 certified, ensuring reliability for aerial photography, industrial, agricultural, and commercial applications. With a technical team comprised of experts from leading enterprises in the RC industry, we offer robust R&D capabilities for professional OEM/ODM solutions. We focus on a comprehensive series of flight control systems, brushless speed controllers, FOC speed controllers, and specialized motors designed to meet the highest performance and quality standards for our global clientele.
Frequently Asked Questions
What are the main advantages of using a brushless servo motor?
Brushless servos offer significantly higher efficiency, faster response speeds, and a longer lifespan compared to traditional brushed motors due to reduced internal friction and heat.

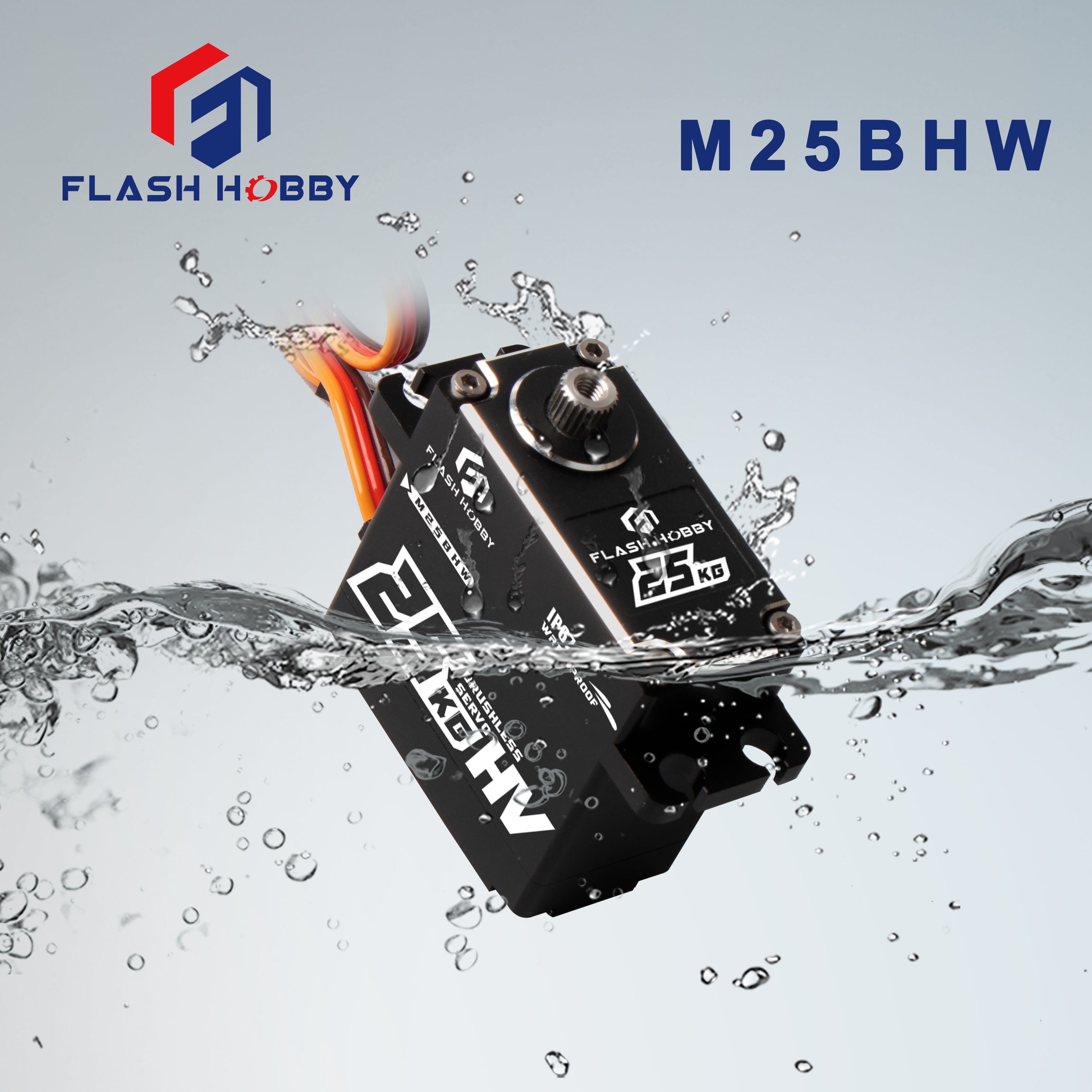

Is the M25BHW servo motor truly waterproof?
Yes, this model features a waterproof protect feature, making it ideal for RC boats, off-road cars, and other outdoor applications where exposure to moisture is common.
What is the recommended operating voltage for this servo?
The operation voltage range is between 6.0V and 8.4V. For maximum torque (25KG) and speed performance, an 8.4V input is recommended.
What material is the servo case made of?
The case is constructed from high-quality CNC AL6082 Aluminum, which provides excellent durability and efficient heat dissipation during high-load operations.
Does this product support digital control signals?
Yes, it uses digital control for more precise positioning, faster signal processing, and better holding torque compared to analog servos.

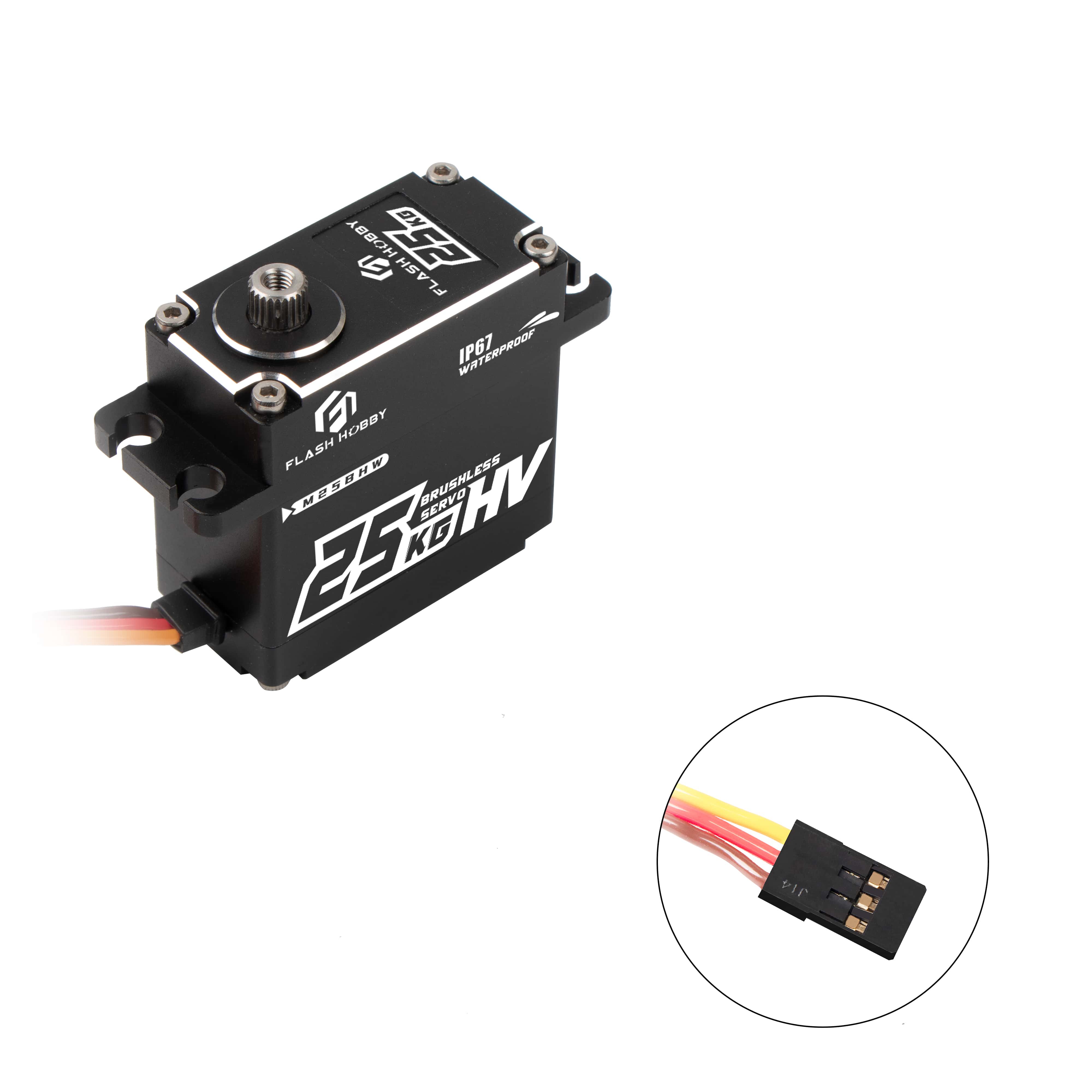

What type of connector does the servo use?
It comes equipped with a standard 300mm JR Plug with high-quality 22AWG wire, ensuring compatibility with most receivers on the market.
