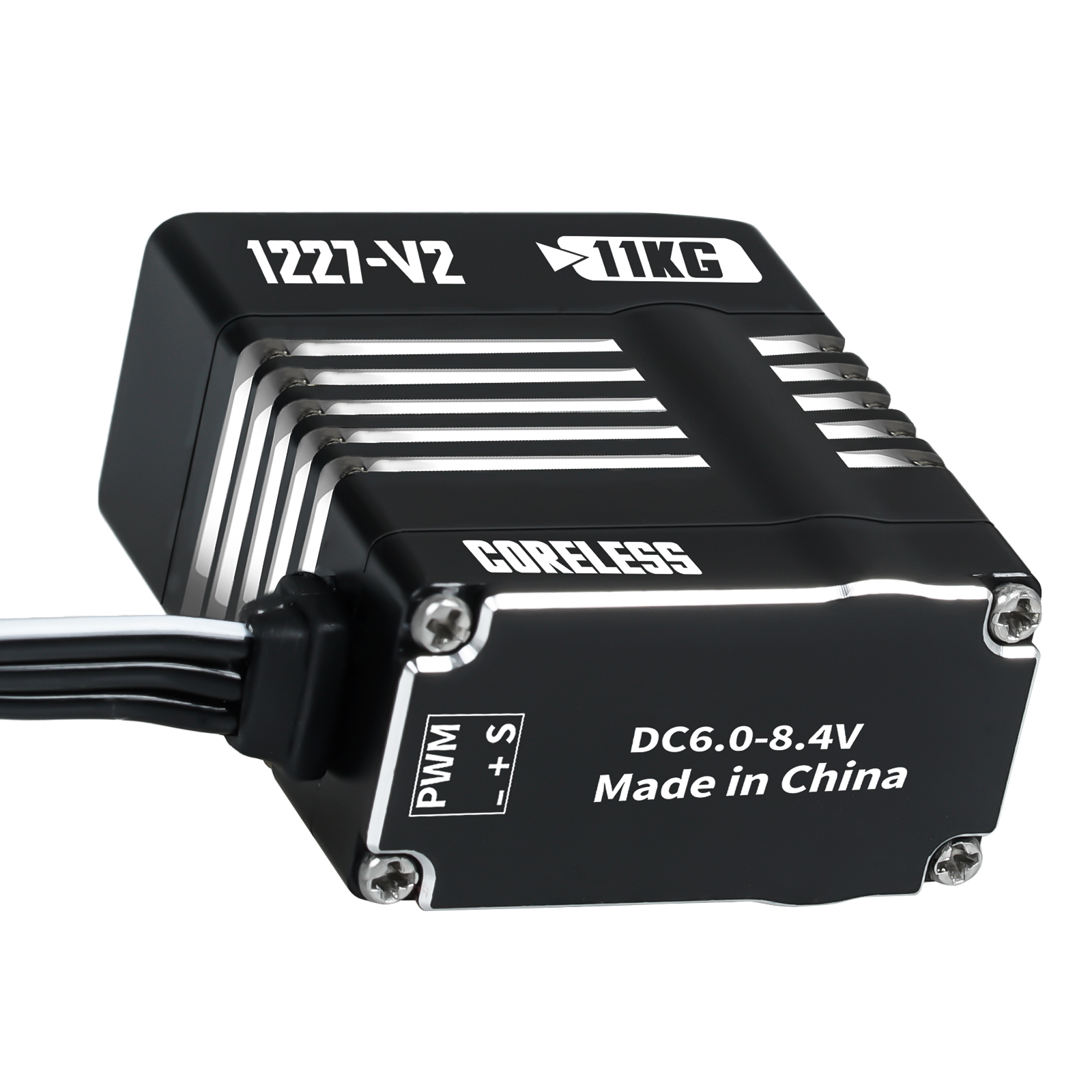

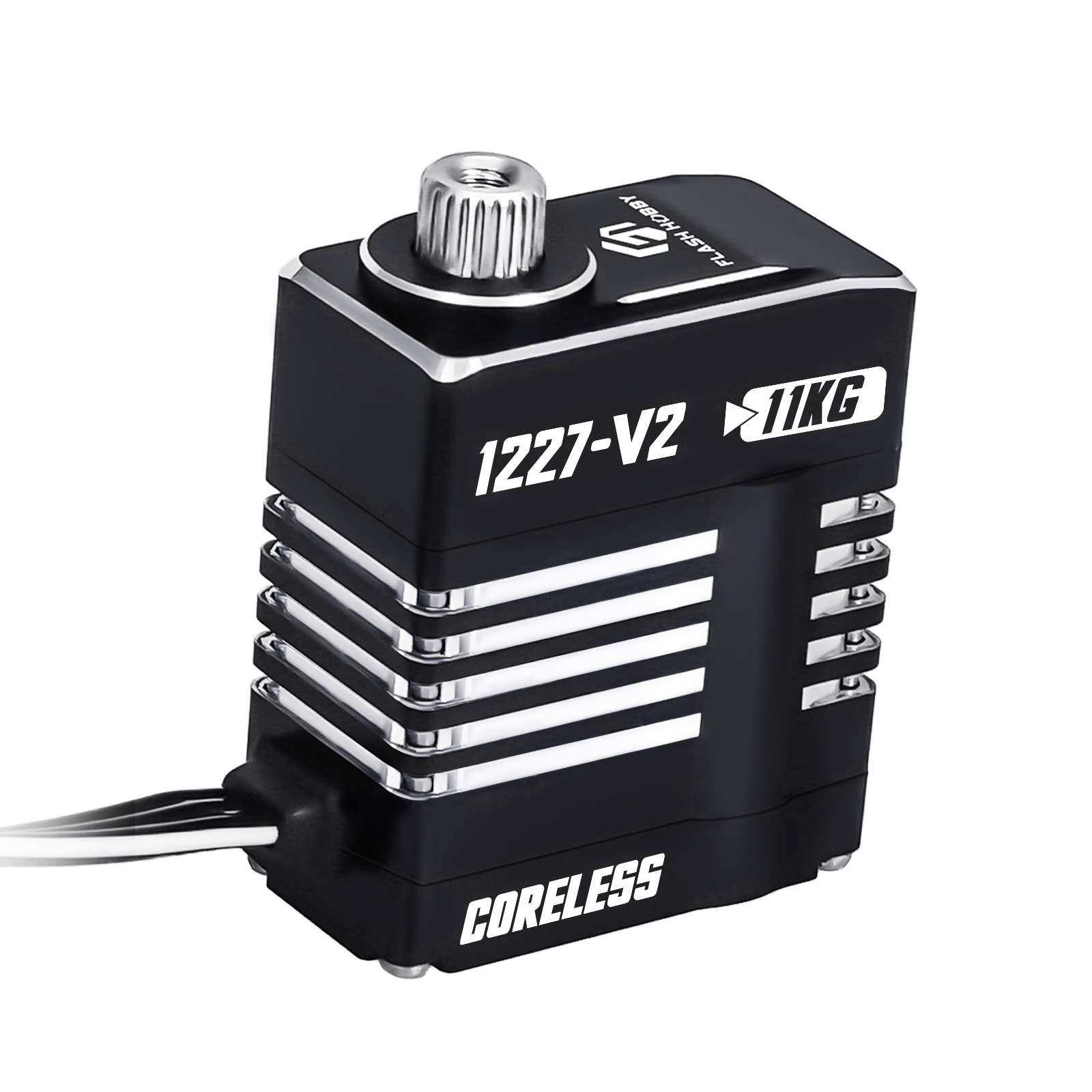

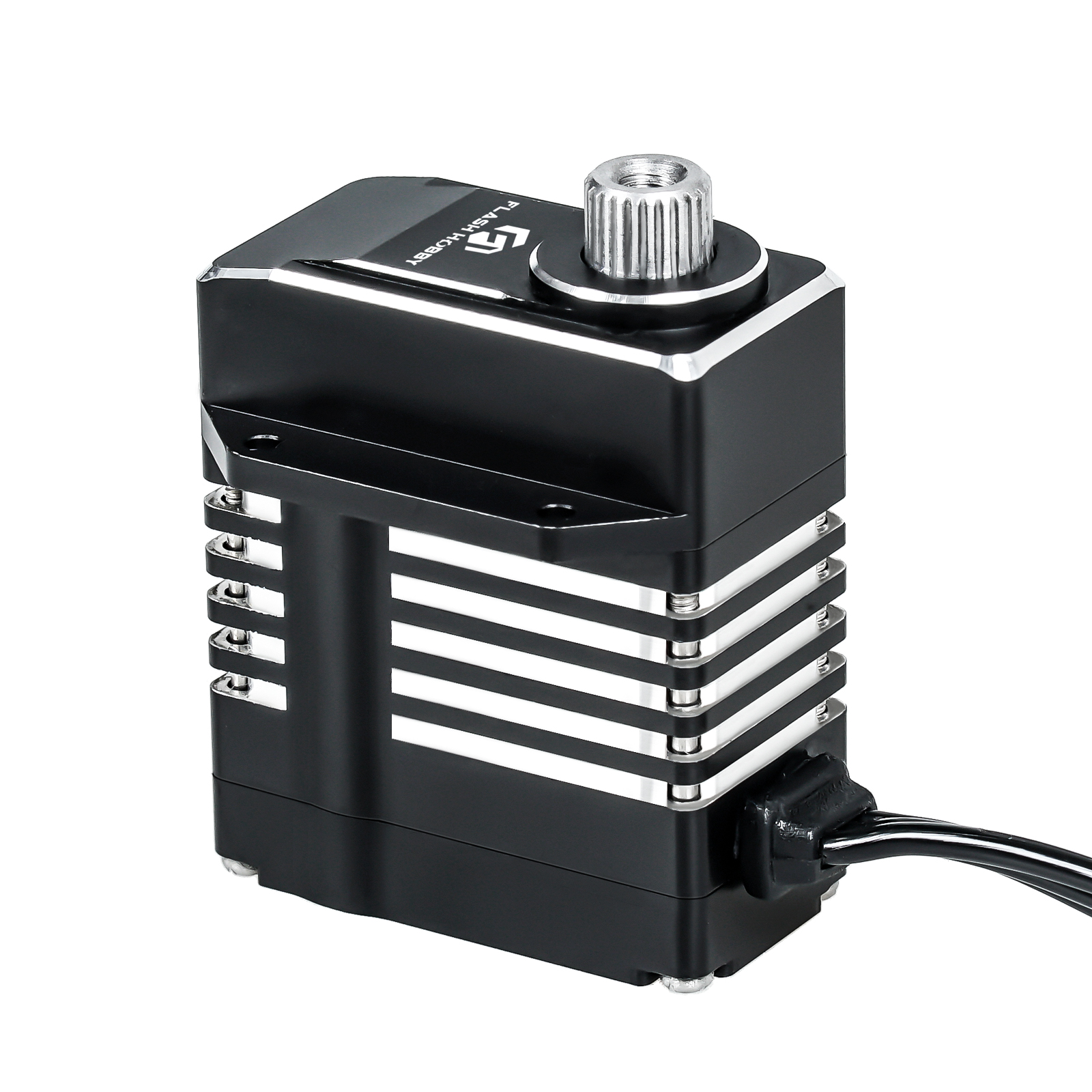

Flashhobby CLS1227 V2 Coreless Servo Motor IP65 Waterproof for HORIZON SCX24 Car & Smart Home Use 2BB Full Aluminum CNC

Product Description

Product Description
Technical Specifications
Speed (RPM)0.106sec/60°
Continuous Current (A)100mA
EfficiencyIE 1
Warranty3 months
Model NumberCLS1227
Frame23mm
Rated VoltageAt 6.0V
Motor Mounting TypeFlange mount
UseCar, SMART HOME
TypeServo motor
Protect FeatureWaterproof
Operation Voltage RangeDC6.0~8.4V
Operation Temperature Range-20C°~ +70C°
Pulse Width500 to 2500 uSec
Circle>one million times without load
Operation Travel180°± 5°
Dimension23X12.6X27.0 mm

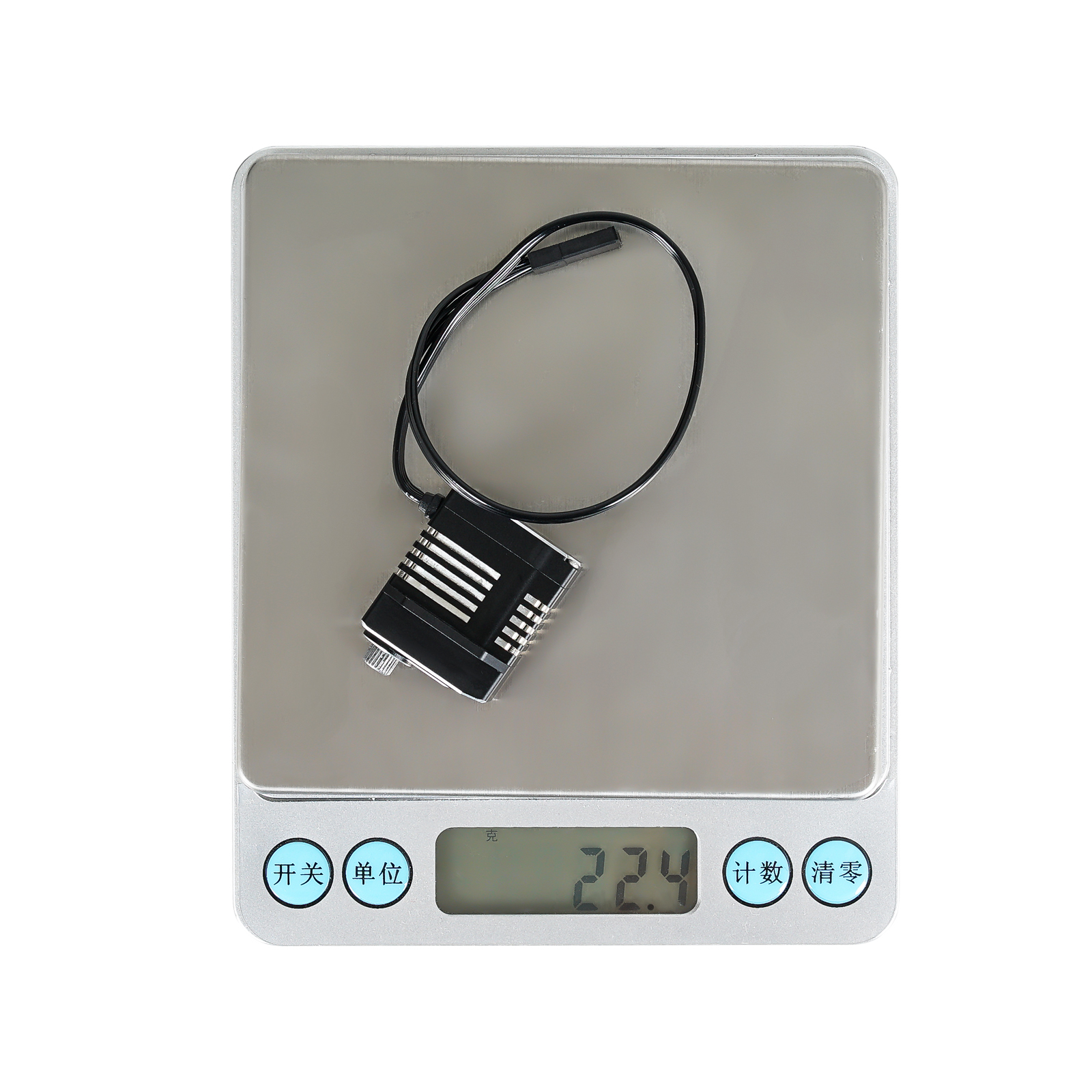

Weight22g± 3g
Ball Bearing2BB
Gear TypeStraight
Case MaterialFull Aluminum CNC
Industrial Solutions
We provide propulsion system solutions for UAVs with advanced technology, specializing in Motors, ESCs (Electronic Speed Controllers), and Servos. Our products have passed ISO 9001:2015, which are widely used for aerial photography, industrial, agricultural, and commercial applications. With high standards for quality, we offer professional OEM/ODM solutions since our technical team comes from famous branded enterprises with rich experience in the industry. We focus on flight control systems, brushless speed controllers, FOC speed controllers, outrunner brushless motors, and hall brushless motors.
Frequently Asked Questions
What applications are these servo motors suitable for?
These servos are primarily designed for RC cars and Smart Home applications, but they are also widely used in aerial photography, industrial, and agricultural UAV systems.
Is this servo motor waterproof?
Yes, this model features a waterproof protection rating, making it suitable for various operating environments.
What is the operating voltage range for the CLS1227?
The recommended operation voltage range is DC 6.0V to 8.4V.
What materials are used in the construction of this servo?
The servo features a full Aluminum CNC case for superior heat dissipation and durability, equipped with straight gears and 2BB ball bearings.
Can you provide customized OEM/ODM services?
Yes, we offer professional OEM/ODM services to meet various customer demands, drawing on our extensive experience in the propulsion system industry.
What is the expected lifespan or duty cycle of the motor?
The motor is tested to perform for over one million cycles without load under standard operating conditions.
