Flashhobby MT3515 400KV Fixed Brushless Motor Industrial Use for Multicopter RC Toy Car Racing Plane Waterproof Fan

Product Description

Product Description
Technical Specifications
Warranty 3months-1year
Model Number MT3515 3515 400KV Fixed Brushless Motor
Usage BOAT, Car, Electric Bicycle, FAN, Home Appliance, Multicopter, FPV Racing Drone
Type Brushless Motor
Torque / Max Pull 2690g
Construction Permanent Magnet
Protection Feature Waterproof
Speed (RPM) 400KV
Continuous Current 20A~40A
Efficiency IE 1

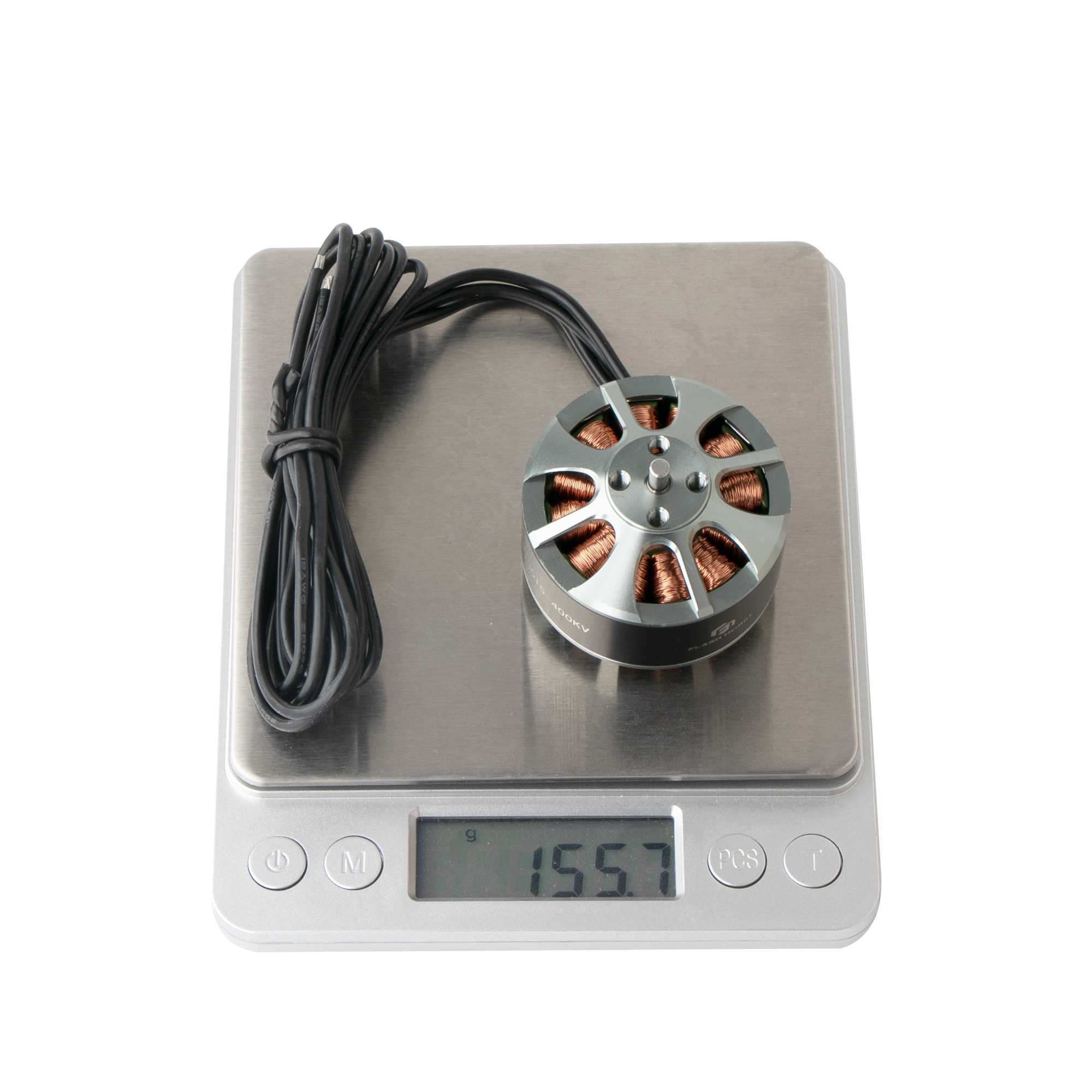

Weight 158.0g (including cables)

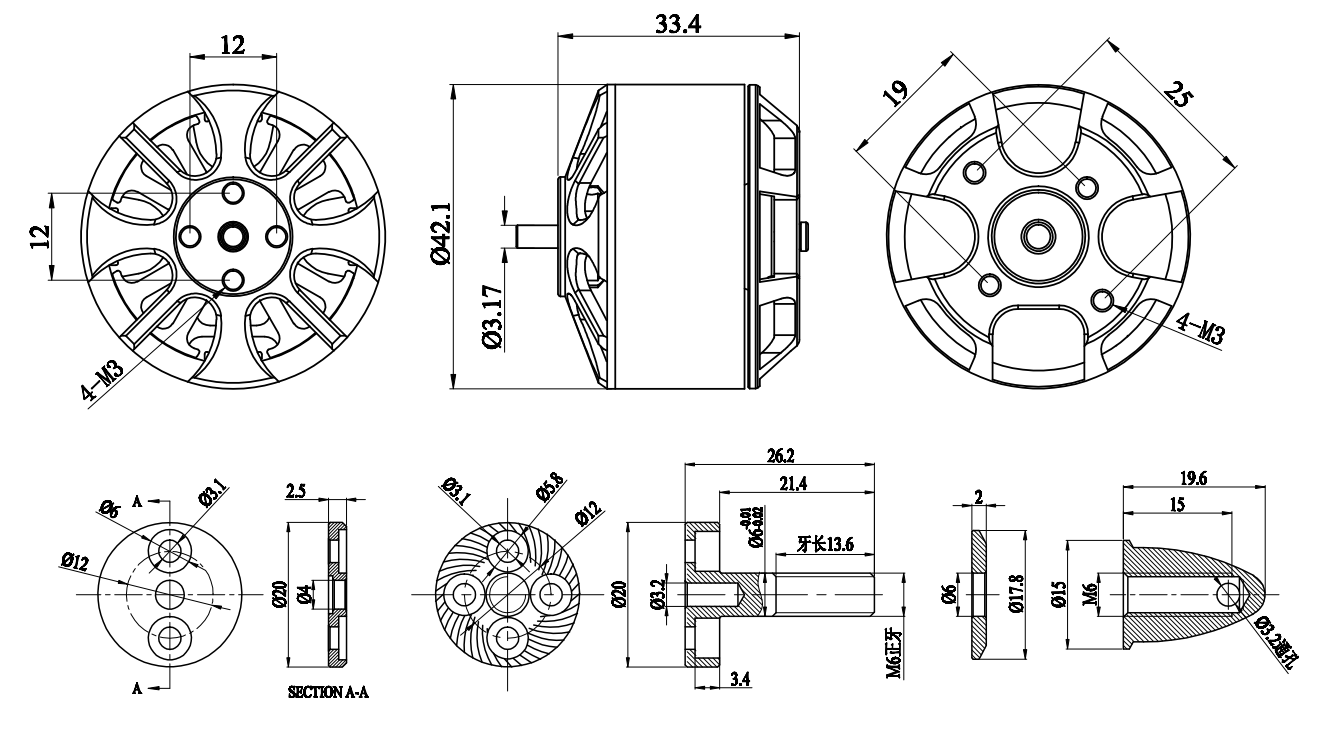

Motor Size 42 x 33.4mm
Shaft Diameter 4.0mm
Motor Mount 19*25mm(M3*4)
Configuration 12N14P
Recommend Propeller 14~15" inch prop application
Voltage 22.2V(6S)
Professional Overview
Providing propulsion system solutions for UAVs with advanced technology, specializing in Motors, ESCs (Electronic Speed Controllers), and Servos. Products have passed ISO 9001:2015 and are widely used for aerial photography, industrial, agricultural, and commercial applications. With strong R&D ability and rich experience in the industry, professional OEM/ODM solutions are provided to meet various customer demands. The focus remains on flight control systems, brushless speed controllers, FOC speed controllers, and outrunner brushless motors, ensuring high-quality propulsion for global applications.
Certifications
Frequently Asked Questions
? What are the primary applications for this brushless motor?
This motor is designed for various high-performance applications including UAVs (multicopters, FPV racing drones), RC boats, cars, electric bicycles, and industrial or agricultural aerial photography.
? How is the quality of these motors guaranteed?
Quality is maintained through a strict ISO 9001:2015 process, involving pre-production samples before mass production and a final inspection of every unit before shipment.
? What propeller sizes are recommended for the 400KV version?
For optimal performance with the 400KV motor, we recommend using 14-inch to 15-inch propellers.
? Is this motor waterproof or protected against environmental factors?
Yes, this motor features waterproof protection, making it suitable for various outdoor and industrial environments where moisture might be present.
? What are the power requirements for the MT3515 motor?
The motor is optimized for a 22.2V (6S) voltage input and operates within a continuous current range of 20A to 40A.
? Do you provide customization through OEM or ODM services?
Yes, professional OEM and ODM services are available for propulsion systems, including custom KV values for motors and specific configurations for ESCs and servos.
